Tools for forks
« on: 06.05. 2014 17:08 »
Hi all,
I'm hoping to save some money by making my own tools for working on the front forks. I've hogan old cap to make a puller but I was wondering is anyone had the dimensions and maybe a picture of the end of the tool for removing the nut for stripping forks?
Cheers,
Shaun
61 Super Rocket swing-arm

Offline Billybream

  • Resident Legend
  • *****
  • Join Date: Jan 2012
  • Posts: 640
  • Karma: 8
Re: Tools for forks
« Reply #1 on: 06.05. 2014 19:53 »
Hi Shaun.
Do you mean a tool to remove the oil seal holders from the fork leg. A good quality strap wrench might help, but I have made a tool from hollow tube with id to clear fork inner tube and od to fit inside seal holder. The tool then has a pair of tangs or dogs to locate into the slots at the bottom of the seal holder. The tool is then finished off with two tapped holes at the top to enable bolts to fastenen to aid turning during dis-assembly and re-assembly.
If you would like some dimensions of the tool please advise.
1960 Super Rocket, owned since 1966, back on the road 2012 after being laid up for 29yrs.

Offline ShaunMac

  • A's Good Friend
  • ***
  • Join Date: Feb 2013
  • Posts: 128
  • Karma: 1
Re: Tools for forks
« Reply #2 on: 06.05. 2014 20:14 »
That's the one.
Some dimensions would be great.
Thanks.
61 Super Rocket swing-arm

Offline Billybream

  • Resident Legend
  • *****
  • Join Date: Jan 2012
  • Posts: 640
  • Karma: 8
Re: Tools for forks
« Reply #3 on: 07.05. 2014 19:47 »
Hi Shaun.
OD = 1" 7/8
ID = 1" 1/2
Overall length of tool = 9" 1/2
Two tapped holes on centre line 1" 1/4 from top, I used 5/16" whit bolts as handles.
Dogs or Tangs are off the centre line, 1/8" thick x 3/8" long x 3/16" deep. So basically reduce OD @ end to 1" 5/8 x  3/16" length, and produce tang to 3/8" width.
1960 Super Rocket, owned since 1966, back on the road 2012 after being laid up for 29yrs.

Online bsa-bill

  • Wise & Enlightened
  • *
  • Join Date: Mar 2006
  • Posts: 5720
  • Karma: 66
Re: Tools for forks
« Reply #4 on: 07.05. 2014 19:55 »
Made two or three of these and my mates made a couple, never strong enough tabs on them, possibly our engineering skills are lacking something, best thing I did was buy the purpose made tool, it's worked 100% every time I've used it
All the best - Bill
1961 Flash - stock, reliable, steady, fantastic for shopping
1959 Rocket Gold Flash - blinged and tarted up  would have seizure if taken to  Tesco

Offline Butch (cb)

  • Wise & Enlightened
  • *
  • Join Date: Aug 2010
  • Posts: 1691
  • Karma: 16
Re: Tools for forks
« Reply #5 on: 08.05. 2014 12:32 »
I've done the same kind of thing for a Guzzi g/box. I bought a box spanner of about the right size and then built up some tangs on one end with a welder. Left me with a useful hex at the other end to get a spanner on.

Warning - observations made by this member have a 93% unreliability rating.

Of Bikes; various, including ...
'58 S/Arm Iron Head Flash Bitza


Offline duTch

  • Ricketty Rocketty Golden Flashback
  • Wise & Enlightened
  • *
  • Join Date: Oct 2011
  • Posts: 4528
  • Karma: 41
Re: Tools for forks
« Reply #6 on: 08.05. 2014 15:26 »

 Some piccies would be good- I don't have a need for eh fork tool, but surely someone will, but I do have a Gutzzi box I need to dissect ....cycloB....?
Started building in about 1977/8 a on average '52 A10 -built from bits 'n pieces never resto intended -maybe 'personalised'
Have a '74 850T Moto Guzzi since '92-best thing I ever bought doesn't need a kickstart 'cos it bump starts sooooooooo(mostly) easy
Australia

Offline Butch (cb)

  • Wise & Enlightened
  • *
  • Join Date: Aug 2010
  • Posts: 1691
  • Karma: 16
Re: Tools for forks
« Reply #7 on: 08.05. 2014 17:47 »
I can feel a moderator breathing down my neck - might be a little too far off piste on this now. I'll see if I can turn it up amongst the detritus in the garage and then PM you. Happy to send it out on loan but would want it returned as I have aspirations for another big round barrel.
Warning - observations made by this member have a 93% unreliability rating.

Of Bikes; various, including ...
'58 S/Arm Iron Head Flash Bitza


Offline Billybream

  • Resident Legend
  • *****
  • Join Date: Jan 2012
  • Posts: 640
  • Karma: 8
Re: Tools for forks
« Reply #8 on: 08.05. 2014 18:22 »
Please find link to Fork Service Sheet.
http://www.bsawiki.com/index.php%3Ftitle%3DChapter11
1960 Super Rocket, owned since 1966, back on the road 2012 after being laid up for 29yrs.

Offline Butch (cb)

  • Wise & Enlightened
  • *
  • Join Date: Aug 2010
  • Posts: 1691
  • Karma: 16
Re: Tools for forks
« Reply #9 on: 08.05. 2014 21:45 »
Box spanner for big twin Guzzi g/box.
Warning - observations made by this member have a 93% unreliability rating.

Of Bikes; various, including ...
'58 S/Arm Iron Head Flash Bitza


Offline The Artful Bodger

  • Moving Up
  • **
  • Join Date: Dec 2013
  • Posts: 31
  • Karma: 3
Re: Tools for forks
« Reply #10 on: 08.05. 2014 23:07 »

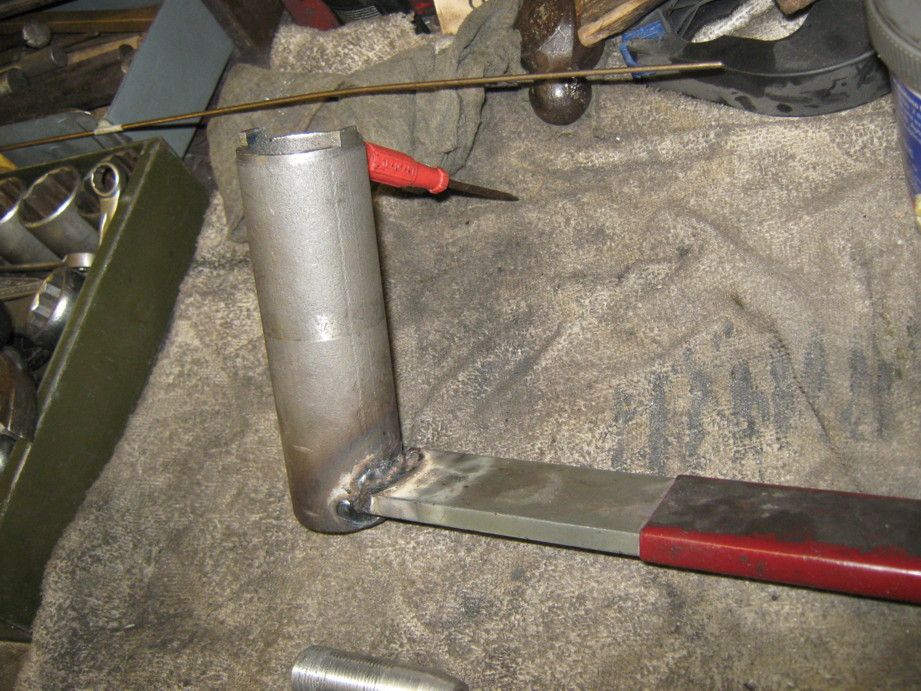

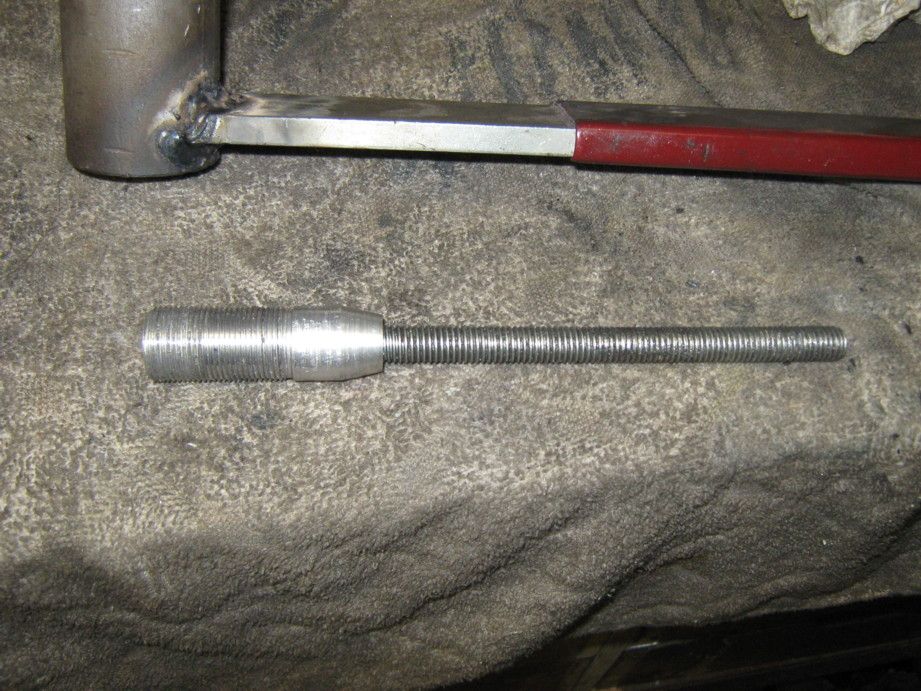

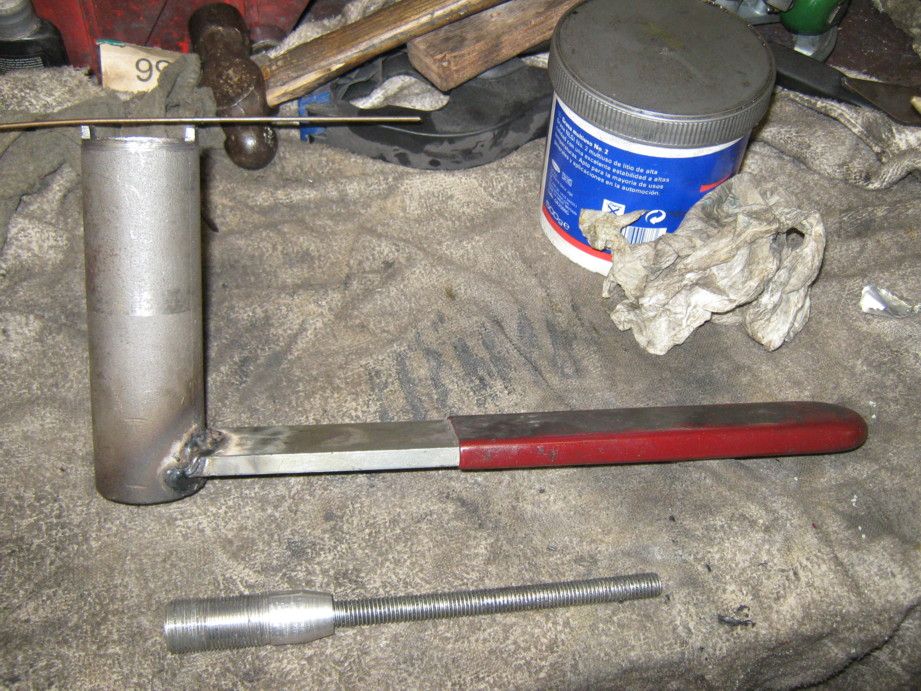

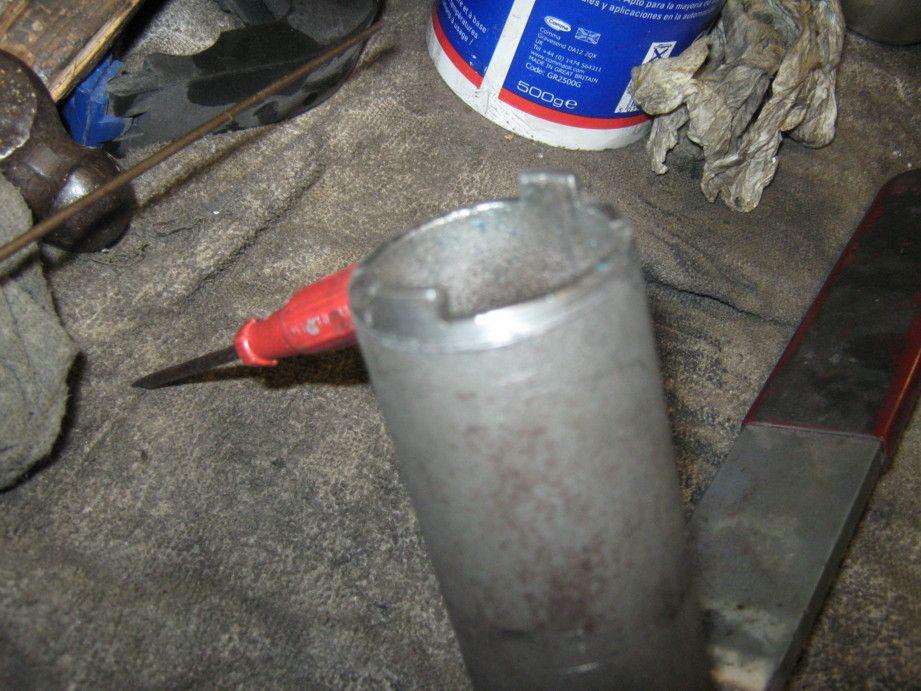

I was watching this post as my Ariel forks were leaking, well one side anyway. Tackling the job today I have made the seal tool and a "draw up plug". Just removing the forks from the yokes is easy enough but couldn't get them back up as the stanchion just drops back inside the leg as it all gets pushed up. The plug (3/4" dia screw cut to 20 TPI.) screws into the top of the stanchion and the 10 mm thread is grab-able to wind it up into the yokes so the top bolt can be screwed in.






  Colin
