Author Topic: A10 semi-unit primary case oil seal  (Read 2373 times)

Offline orabanda

  • Wise & Enlightened
  • *
  • Join Date: Nov 2008
  • Posts: 1031
  • Karma: 22
A10 semi-unit primary case oil seal
« on: 17.11. 2008 09:51 »
Hi all,
I wanted a better (and more easily serviced) primay case - gearbox oil seal, so came up with this arrangement for my semi-unit bikes.

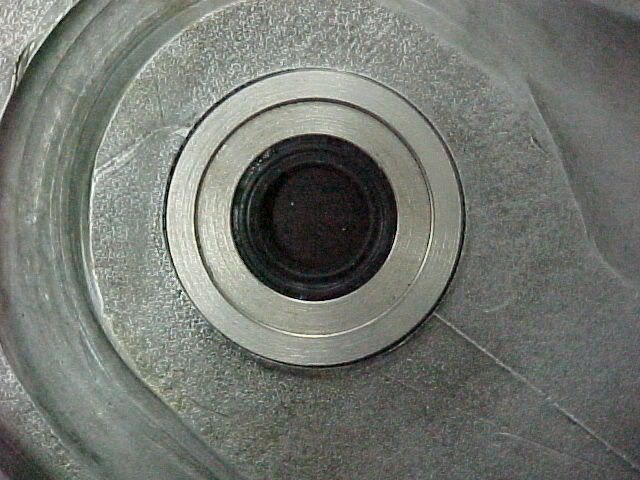

I bored out the alloy casing, until the three rivet holes cleaned up

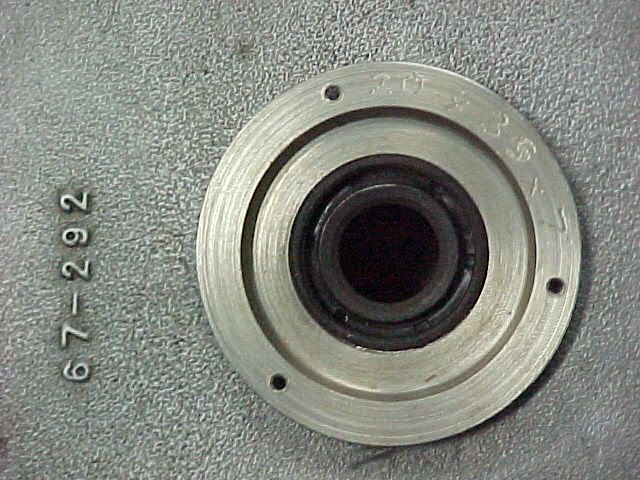

Then made 2 x halves threaded male and female. The outside half is an interference fit; however, both halves lock in when done up anyway.


Regards,

Richard
Good Advice
0
No reactions

Richard

  • Guest
Re: A10 semi-unit primary case oil seal
« Reply #1 on: 17.11. 2008 18:37 »
I was impressed with this and was talking to Bill Little this afternoon about it
However does the advantage of easier seal replacement justify the time and cost of this exercise bearing in mind that the seal replacement is something that does not require doing very often
Respect
Richard
Good Advice
0
No reactions

Offline a10gf

  • Wise & Enlightened
  • *
  • Join Date: Sep 2006
  • Posts: 2831
  • Karma: 42
  • West Coast, Norway & Alpes Maritimes, France
    • A10 GF
Re: A10 semi-unit primary case oil seal
« Reply #2 on: 08.04. 2013 12:36 »
Just seeing this for the 1st time! Excellent work indeed.
Good Advice
0
No reactions

A10 GF '53 My A10 website
"Success only gets you a ticket to a much more difficult task"

Offline renos-a10

  • A's Best Friend
  • ***
  • Join Date: Dec 2010
  • Posts: 209
  • Karma: 8
Re: A10 semi-unit primary case oil seal
« Reply #3 on: 08.04. 2013 13:04 »
I will do the same i think in my Plunger!!
Exellent work!!
Good Advice
0
No reactions
1954 BSA A10 Plunger
Cyprus

Offline Briz

  • A's Best Friend
  • ***
  • Join Date: Apr 2013
  • Posts: 209
  • Karma: 7
  • West Norfolk UK
    • Custom cycle developments
Re: A10 semi-unit primary case oil seal
« Reply #4 on: 08.04. 2013 13:34 »

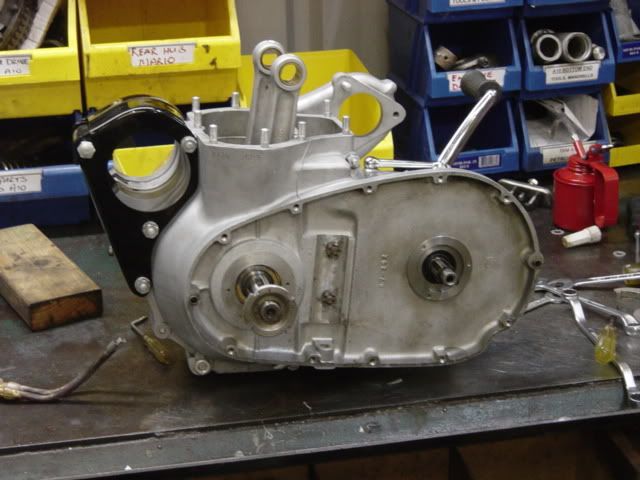

I did this 30 years ago! Except I made it big enough to be able to get the gearbox sprocket off too.

Offline orabanda

  • Wise & Enlightened
  • *
  • Join Date: Nov 2008
  • Posts: 1031
  • Karma: 22
Re: A10 semi-unit primary case oil seal
« Reply #5 on: 08.04. 2013 15:38 »
Gosh, a blast from the past; I had forgotten all about that!

And a perfect result; I don't have leaks from the primary case seal!

Also did this mod for my 51 plunger.

Recently got a '49 long stroke A7, so will do the same for this engine when the time comes.

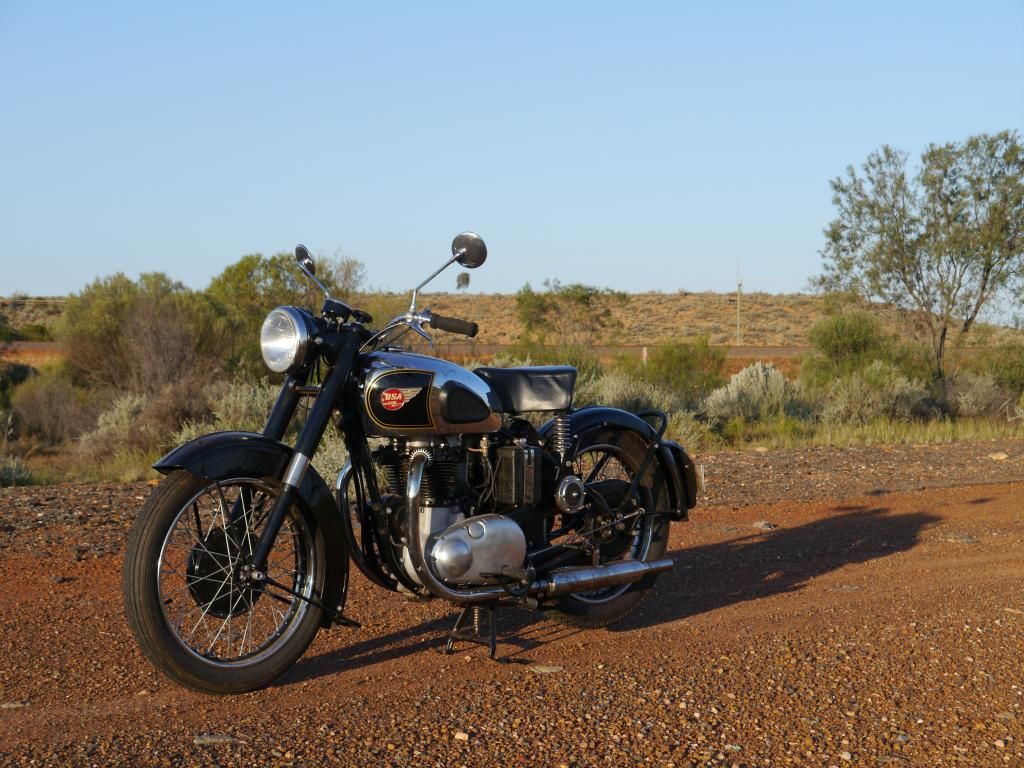

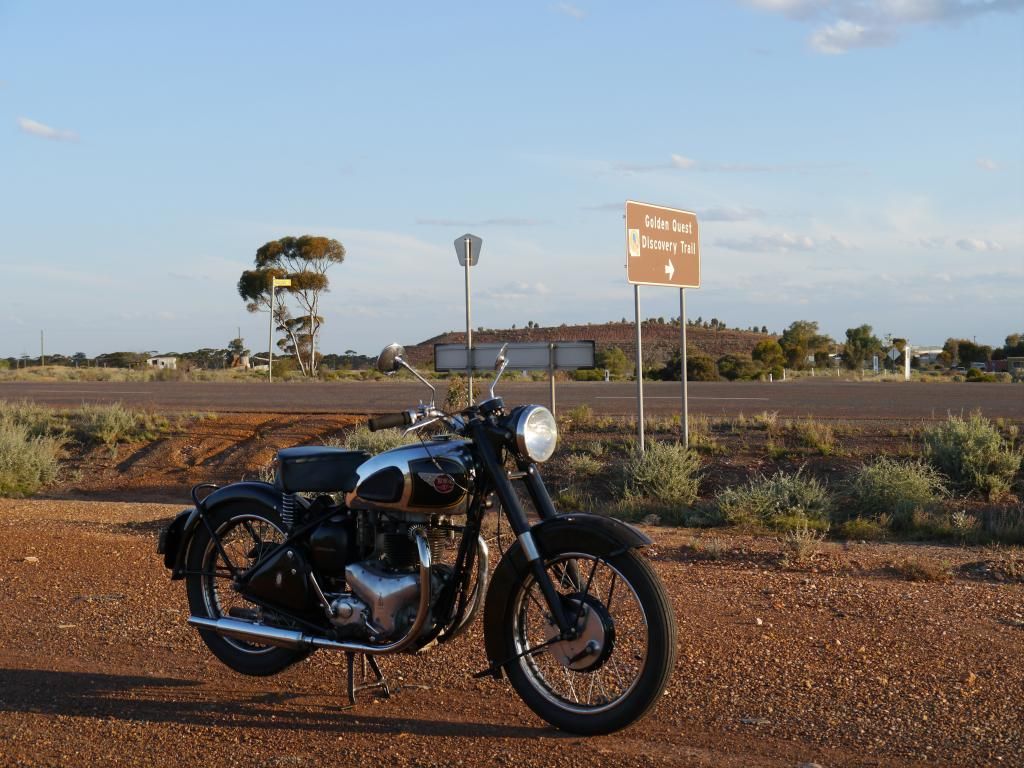

Here is the donk in the bike; a sweet thing to ride!
