Author Topic: BSA headlight??  (Read 4032 times)

Offline RoadRunner

  • A's Best Friend
  • ***
  • Join Date: May 2010
  • Posts: 198
  • Karma: 2
  • Thinking Time
BSA headlight??
« on: 27.02. 2011 22:04 »
Hi,
I've had this headlight for some time and would be grateful if anyone could shed any light on which bike its from (came with a load of BSA stuff but that doesn't mean much I know.... *conf*).

Its got a 7" Lucas glass but the lighting switch and ameter are off centre by quite a bit? Could these be modifications (added later?) - surely it wouldn't have been made like this would it?? Pics below:

Cheers
RoadRunner

Offline LJ.

  • Peterborough UK.
  • Wise & Enlightened
  • *
  • Join Date: Jun 2006
  • Posts: 1403
  • Karma: 15
  • The Red A10!
    • LJ's Website!
Re: BSA headlight??
« Reply #1 on: 27.02. 2011 22:09 »
Hmmmm? well the straight part of the brackets suggest girder forks but as for the loops on the end I'm afraid I don't know. Have a look inside for any signs of green paint in which case if so, would suggest a WD M20.
Ride Safely Lads! LJ.
**********************
1940 BSA M20 500cc Girder/Rigid- (SOLD)
1947 BSA M21 600cc Girder/Rigid-Green
1949 BSA A7   500cc Girder/Plunger Star Twin-(SOLD)
1953 BSA B33  500cc Teles/Plunger-Maroon
1961 BSA A10  650cc Golden Flash-Blue
1961 BSA A10  650cc Golden Flash-Red

Offline Flatboy 1950

  • A's Best Friend
  • ***
  • Join Date: Oct 2010
  • Posts: 110
  • Karma: 1
    • Flat Earth Spares
Re: BSA headlight??
« Reply #2 on: 28.02. 2011 08:37 »
The bikes that I have owned with an ammeter & switch have these items mounted in a small panel and this panel then mounts on the headlamp.
Looks like a bush mechanic bodge ....
Cheers Flatboy.

Offline andy2565

  • A's Best Friend
  • ***
  • Join Date: May 2010
  • Posts: 167
  • Karma: 0
Re: BSA headlight??
« Reply #3 on: 28.02. 2011 10:44 »
there should be a model number underneath if its lucas,just by the hook,dragonfly websight tells you which shell was fitted to which model.
near wolves uk,will keep riding as long as can stay upright,tribsa,tt500,2xJAP grasstrackers+jawa.gold flash.triumph metisse,and others.

Offline Goldy

  • Warwickshire, England
  • Resident Legend
  • *****
  • Join Date: Dec 2008
  • Posts: 619
  • Karma: 9
Re: BSA headlight??
« Reply #4 on: 28.02. 2011 10:50 »
I think that you will find that because it has the side struts that it,s from a BSA Gold Star.
56 A10 Golden Flash - Restore, ride, relive.
56 C12 BSA project ongoing

Offline alanp

  • Plymouth, Devon
  • Valued Contributor
  • ****
  • Join Date: Jul 2009
  • Posts: 473
  • Karma: 7
Re: BSA headlight??
« Reply #5 on: 28.02. 2011 15:08 »
Not any Gold Star I know about unless it's one of the very early first models. They typically have the same switch/ammeter unit mounted in the headlight shell and a curved/loop support for the bottom link running from one side to the other.
I checked out the M20 situation and the photo I found of a restoration project shows a normal switch/ammeter unit in the shell, but it did have two tubular links but for girder forks.
 I can't help with positive identification, sorry.
Member of the 'Last of the Summer Wine Club - Jennycliff'.

Online trevinoz

  • Newcastle, N.S.W. Australia.
  • Wise & Enlightened
  • *
  • Join Date: Jul 2006
  • Posts: 2869
  • Karma: 67
Re: BSA headlight??
« Reply #6 on: 28.02. 2011 19:26 »
I'm with Flatboy.
Looks like a 60s shell with an early switch fitted.
The ammeter is a late alternator type.
   Trev.

Offline RoadRunner

  • A's Best Friend
  • ***
  • Join Date: May 2010
  • Posts: 198
  • Karma: 2
  • Thinking Time
Re: BSA headlight??
« Reply #7 on: 28.02. 2011 22:50 »
Thanks for the replies guys,

Shame it doesn't appear to be off a G/Star - I'll get it cleaned up as see if any numbers appear.
But perhaps it'll look okay on a cafe racer type; one to mull over with a pint!

Cheers

RoadRunner


Offline andy2565

  • A's Best Friend
  • ***
  • Join Date: May 2010
  • Posts: 167
  • Karma: 0
Re: BSA headlight??
« Reply #8 on: 01.03. 2011 09:20 »
the goldstar has a hole in the bottom for a pug in loom,so the headlight could be removed,does look similar on the top,check the number.
near wolves uk,will keep riding as long as can stay upright,tribsa,tt500,2xJAP grasstrackers+jawa.gold flash.triumph metisse,and others.

Offline RoadRunner

  • A's Best Friend
  • ***
  • Join Date: May 2010
  • Posts: 198
  • Karma: 2
  • Thinking Time
Re: BSA headlight??
« Reply #9 on: 05.08. 2011 21:12 »
Finally got round to removing the paint to reveal its a Lucas headlight shell with the part number of 'SS700P'?
Had a brief look on Draganfly's site but couldn't locate the headlight or reference to them? Also the BSAOC site was down!

So if anyone can shed any light on what this h/light belongs to I'd be grateful.

Cheers
RoadRunner

Offline iansoady

  • Valued Contributor
  • ****
  • Join Date: Jul 2010
  • Posts: 471
  • Karma: 9
Re: BSA headlight??
« Reply #10 on: 06.08. 2011 11:47 »
That's the standard Lucas pre-focus shell used on loads of bikes. Given its age it's probably been bodged several times....
Ian.
1962 Golden Flash (arrived)
1955 Velo Viper/Venom (departed)
2004 Triumph Tiger 955i (staying)

Offline wilko

  • Resident Legend
  • *****
  • Join Date: Mar 2010
  • Posts: 681
  • Karma: 4
Re: BSA headlight??
« Reply #11 on: 06.08. 2011 17:20 »

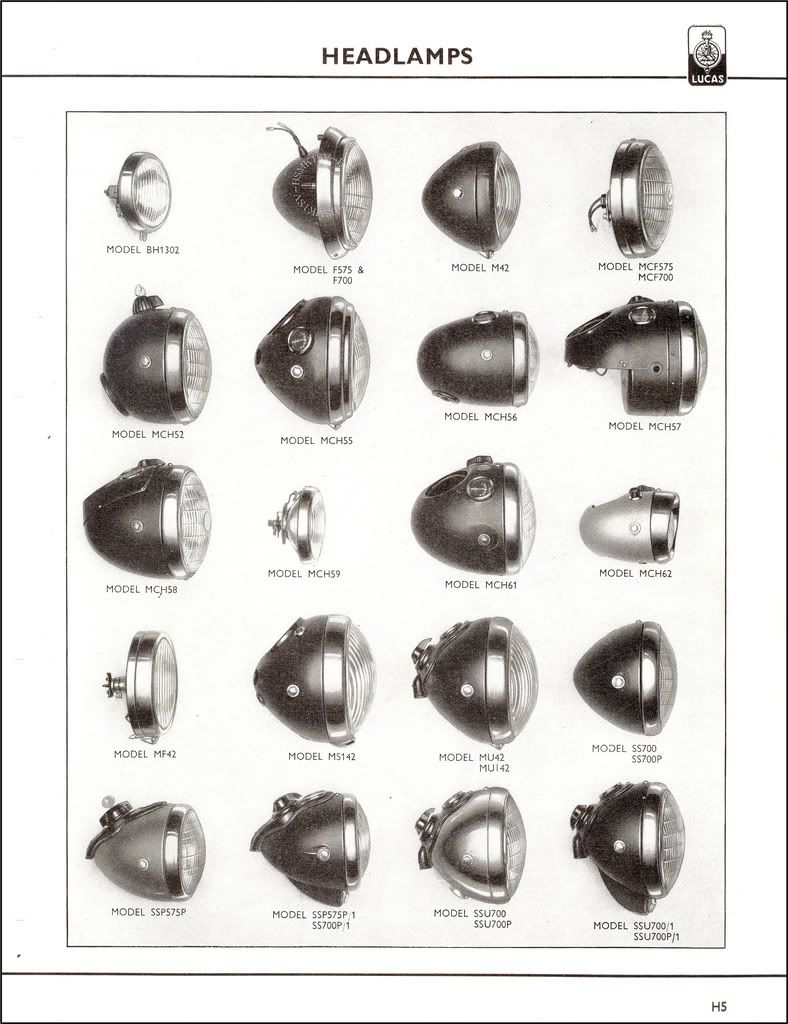

Take your choice!

Offline RoadRunner

  • A's Best Friend
  • ***
  • Join Date: May 2010
  • Posts: 198
  • Karma: 2
  • Thinking Time
Re: BSA headlight??
« Reply #12 on: 06.08. 2011 19:38 »
Thanks Ian & Wilko,
The shells looks like it has been 'improved' since both the lighting switch and ammeter are not exactly central to say the least! So I would guess from the illustrations (cheers Wilko) that it is the plain shell in the fourth vertical column, 2nd from bottom. So not a goldy and perhaps not worth much, but the glass and reflector (no pilot light) are in good condition and with a re-paint wouldn't look too out of place on a cafe racer maybe?

All members replies and input are appreciated  ;D
Cheers
RoadRunner
